BS464 Wire Rope Thimble
Brand: VENIT/OEM
Reliable BS464 wire rope thimbles from an experienced manufacturer with strict quality assurance for durable cable protection in lifting and rigging.
Product Details
BS464 Wire Rope Thimble

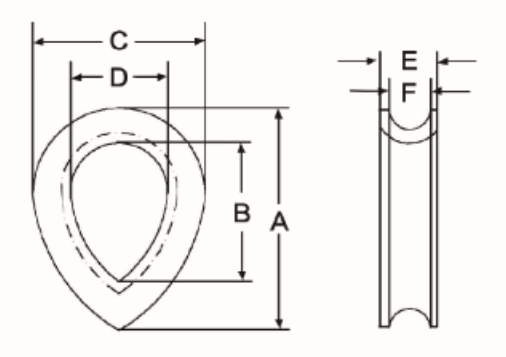

| BRITISH STANDARD BS464 WIRE ROPE THIMBLE | |||||||
| SIZE | DIMENSION(INCH) | WEIGHT | |||||
| INCH | A | B | C | D | E | F | KG/PC |
| 5/16" | 2-1/8" | 1-5/16" | 1-1/2" | 7/8" | 1/2" | 5/16" | 0.065 |
| 3/8" | 2-1/2" | 1-1/2" | 1-7/8" | 1" | 9/16" | 13/32" | 0.091 |
| 7/16" | 2-7/8" | 1-1/2" | 2-1/8" | 1-1/8" | 11/16" | 1/2" | 0.12 |
| 1/2" | 3-1/8" | 1-3/4" | 2=5/16" | 1-1/4" | 13/16" | 9/16" | 0.16 |
| 9/16" | 3-1/8" | 1-3/4" | 2-5/16" | 1-1/4" | 13/16" | 9/16" | 0.172 |
| 5/8" | 3-7/8" | 2-5/16" | 2-15/16" | 1-5/8" | 7/8" | 5/8" | 0.26 |
| 11/16" | 4-1/4" | 2-5/8" | 3-1/8" | 1-3/4" | 1-1/8" | 3/4" | 0.34 |
| 3/4" | 4-7/8" | 2-7/8" | 3-5/8" | 2" | 1-1/8" | 13/16" | 0.45 |
| 7/8" | 4-1/4" | 3-1/4" | 4" | 2=1/4" | 1-1/4" | 7/8" | 0.62 |
| 15/16" | 5-3/4" | 3-5/8" | 4-11/16" | 2-1/2" | 1-5/16" | 1" | 0.8 |
| 1" | 6-3/8" | 4-1/4" | 4-11/16" | 2-3/4" | 1-3/8" | 1-1/16" | 0.95 |
| 1 1/8" | 7" | 4-3/8" | 5-1/4" | 3" | 1-1/8" | 1-1/8" | 1.27 |
| 1 1/4" | 7-3/4" | 5-1/4" | 6" | 3-3/4" | 1-5/8" | 1-5/16" | 1.6 |
| 1 3/8" | 9" | 6" | 6-7/8" | 4-1/8" | 1-7/8" | 1-1/2" | 2.35 |
| 1 1/2" | 10" | 6-1/2" | 7-3/4" | 4-1/2" | 2-1/8" | 1-5/8" | 3.3 |
| 1 5/8" | 10" | 6-1/2" | 7-3/4" | 4-1/2" | 2-3/16" | 1-3/4" | 3.35 |
| 1 3/4" | 11-1/4" | 7" | 9" | 5" | 2-1/4" | 2" | 6.25 |
| 1 7/8" | 12-1/4" | 7-1/2" | 9-3/4" | 5-1/4" | 2-5/8" | 2-1/8" | 7.7 |
| 2" | 13" | 8" | 10-1/8" | 5-1/2" | 2-3/4" | 2-3/8" | 8.05 |
| 2 1/8" | 13" | 8" | 10-1/8" | 5-1/2" | 2-3/4" | 2-1/2" | 8.3 |
| 2 1/4" | 14" | 8-1/2" | 10-5/8" | 5-3/4" | 3" | 2-5/8" | 8.6 |
| 2 1/2" | 16-1/4" | 9-1/2" | 12-1/4" | 6-1/4" | 3-3/4" | 2-3/4" | 17 |
