G517 Mooring Spelter Socket
Procure G517 mooring spelter sockets for marine applications—VENIT stocks sizes from 1/2" to 2 1/2", with working load limits (WLL) from 3.2 to 110 tons. Each socket is hot-dip galvanized for corrosion resistance in harsh marine environments.
Brand: VENIT/OEM
Product Details
G517 Mooring Spelter Socket

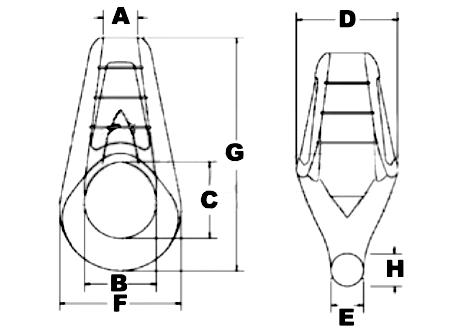

| Rope Size | Ultimate Load | Weight | Dimensions(MM) | ||||||||
| MM | INCH | T | KG/PCS | A | B | C | D | E | F | G | H |
| 32-35 | 1-1/4 - 1-3/8 | 113 | 7.7 | 41.4 | 78.5 | 92.2 | 113 | 36.6 | 130 | 277 | 38.9 |
| 38-41 | 1-1/2 - 1-5/8 | 136 | 13.6 | 49.5 | 93.7 | 110 | 138 | 40.6 | 160 | 330 | 46 |
| 44-48 | 1-3/4 - 1-7/8 | 181 | 19.5 | 56.6 | 106 | 115 | 160 | 46.7 | 183 | 358 | 53.1 |
| 50-54 | 2 - 2-1/8 | 227 | 26 | 63.5 | 121 | 134 | 178 | 53.1 | 210 | 407 | 56.9 |
| 57-60 | 2-1/4 - 2-3/8 | 277 | 34.5 | 70.6 | 133 | 146 | 196 | 58.7 | 233 | 455 | 66.6 |
| 64-67 | 2-1/2 - 2-5/8 | 363 | 48.1 | 77.5 | 149 | 170 | 217 | 68.3 | 257 | 505 | 67.6 |
| 70-73 | 2-3/4 - 2-7/8 | 454 | 62.6 | 84.6 | 165 | 181 | 237 | 76.2 | 282 | 549 | 63 |
| 76-79 | 3 - 3-1/8 | 544 | 87.5 | 89.9 | 184 | 197 | 262 | 82.6 | 313 | 597 | 82.3 |
| 82-86 | 3-1/4 - 3-3/8 | 635 | 104 | 96.8 | 194 | 224 | 278 | 88.9 | 334 | 654 | 87.1 |
| 88-92 | 3-1/2 - 3-5/8 | 735 | 127 | 105 | 203 | 230 | 298 | 93.7 | 355 | 703 | 105 |
| 95-102 | 3-3/4 - 4 | 907 | 174 | 112 | 222 | 267 | 328 | 93.7 | 403 | 765 | 113 |
