Brand: VENIT/OEM
VNT015 G80 Eye Foundry Hook delivers high-strength performance and reliable load handling for safe and efficient heavy-duty lifting and rigging applications.

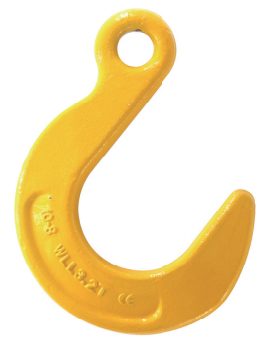

VNT015 G80 Eye Foundry Hook
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
Ultimate load is 4 times the Working Load Limit.

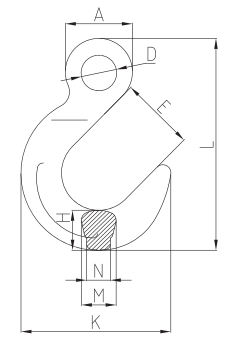

ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | E±1.2 | A±1 | D±1 | H±1 | M±1 | N±0.5 | K±2 | L±2 |
VNT015-06 | 1.09 | 1.6 | 6.4 | 63.5 | 39 | 18 | 31 | 25.4 | 18 | 120 | 163 |
VNT015-8 | 1.09 | 2 | 8 | 63.5 | 39 | 18 | 31 | 25.4 | 18 | 120 | 163 |
VNT015-10 | 2.03 | 3.2 | 12.8 | 76 | 50.8 | 22 | 38 | 32.6 | 23 | 146 | 200 |
VNT015-13 | 3.22 | 5.4 | 21.6 | 89 | 63.5 | 27 | 44.5 | 38.1 | 27 | 171 | 238 |
VNT015-16 | 5.26 | 8.2 | 32.8 | 102 | 76 | 32 | 52 | 46 | 32 | 198 | 278 |
VNT015-20 | 9.1 | 12.8 | 51.2 | 114.5 | 89 | 38 | 65 | 55.9 | 39 | 232 | 325 |
VNT015-22 | 11.3 | 15.5 | 62 | 127.5 | 102 | 45 | 69 | 57 | 40 | 256 | 361 |
VNT015-26 | 16.8 | 21.6 | 86.4 | 140 | 126 | 66.5 | 77 | 66 | 45 | 283 | 402 |
VNT015-32 | 26.6 | 32.8 | 131.2 | 153.5 | 151.5 | 81.5 | 97.5 | 80 | 58 | 327 | 461 |
