Brand: VENIT/OEM
VNT092 A-345 G80 US Type Forged Master Link Assembly is a high-strength forged lifting component designed for secure chain connections in heavy-duty rigging and lifting applications. It offers reliable load performance, excellent durability, and compliance with G80 standards for industrial use.

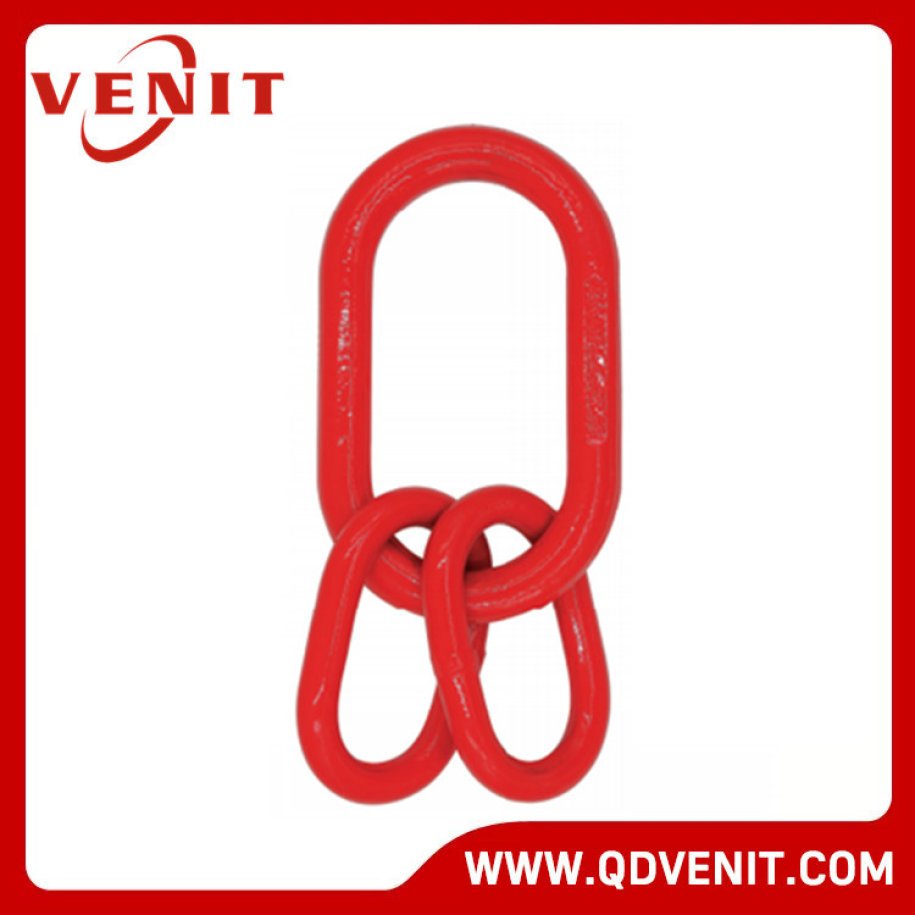

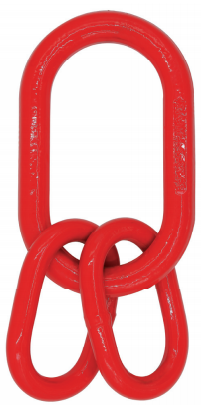

VNT092 A-345 G80 US Type Forged Master Link Assembly
● Main ring: forged; sub-ring: welded.
● The main ring is forged.
● The pressing flat is for use with VNT002-G80 OMEGA LINK.
● There will be pressing flat only on request.
● Color code: RED RAL3020 / YELLOW RAL1003.
● For chain slings: Minimum Ultimate load is 4 times the Working Load Limit.
●For steel rope sling: Minimum Ultimate load is 5 times the Working Load Limit.

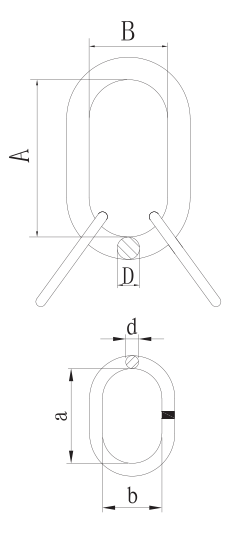

| Item No. | Weight(kg) | G80 Chain | WLL 3 or 4 Leg 0-45°(T) | WLL Rope(T) | A | B | D | a | b | d |
| VNT092-3/4 | 1.55 | 1/4 | 3.15 | 5.6 | 140±5 | 70±4 | 20±1 | 85±4 | 40±3 | 14±0.5 |
| 5/16 | 4.25 | |||||||||
| VNT092-7/8 | 2.18 | 5/16 | 4.25 | 6.9 | 160±5 | 95±4 | 22±1 | 85±4 | 40±3 | 14±0.5 |
| 3/8 | 6.7 | |||||||||
| VNT092-1 | 3.29 | 3/8 | 6.7 | 11.8 | 178±5 | 89±4 | 25±1 | 100±4 | 60±4 | 18±0.5 |
| VNT092-1-1/4 | 7.18 | 1/2 | 11.2 | 17.7 | 220±6 | 110±5 | 32±1 | 100±4 | 60±4 | 22±1 |
| 5/8 | 17 | |||||||||
| VNT092-1-1/2 | 12.91 | 5/8 | 17 | 27.7 | 267±6 | 135±5 | 38 | 180±5 | 100±4 | 30±1 |
| 3/4 | 23.6 | |||||||||
| VNT092-1-3/4 | 21.25 | 3/4 | 23.6 | 38.5 | 305±7 | 152±5 | 45 | 180±5 | 100±4 | 32±1 |
| 7/8 | 31.5 | |||||||||
| VNT092-2 | 30.34 | 7/8 | 31.5 | 46.5 | 356±7 | 178±5 | 50±2 | 180±5 | 100±4 | 38±1 |
| VNT092-2-1/2 | 64.4 | 1 | 45 | 72.6 | 406±10 | 203±6 | 64±2 | 355±7 | 178±5 | 50±1 |
| VNT092-2-3/4 | 94.1 | 1-1/4 | 67 | 98.4 | 406±10 | 241±6 | 70±2 | 406±10 | 203±6 | 60±1 |
