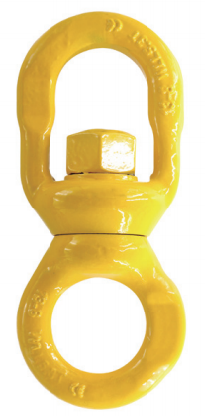

VNT120 G80 Eye Swivel for Hoist
Brand: VENIT/OEM
The VNT120 G80 eye swivel is designed to connect directly to hoists, providing free rotation to prevent chain or rope twisting during lifts.
Product Details
VNT120 G80 Eye Swivel for Hoist
Super alloy steel - Quenched and Tempered.
Surface finish: Powder plastified.
Colour code: Red RAL3020/Yellow RAL1003.
Ultimate load is 4 times the Working Load Limit.

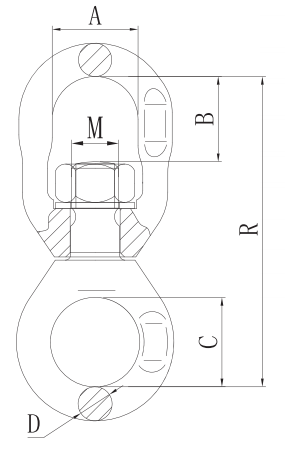

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±1.2 | B±1.5 | C±1 | D±1 | M | R±2.5 |
| VNT120-10 | 1.35 | 3.15 | 12.6 | 42 | 40 | 42 | 16 | 22 | 146 |
| VNT120-13 | 2.02 | 5.3 | 21.2 | 49 | 52.5 | 48 | 19 | 24 | 175 |
| VNT120-16 | 4.1 | 8.0 | 32 | 60 | 63 | 60 | 23 | 30 | 215 |
| VNT120-19 | 5.83 | 12.5 | 50 | 71 | 78 | 72 | 27 | 36 | 256 |
